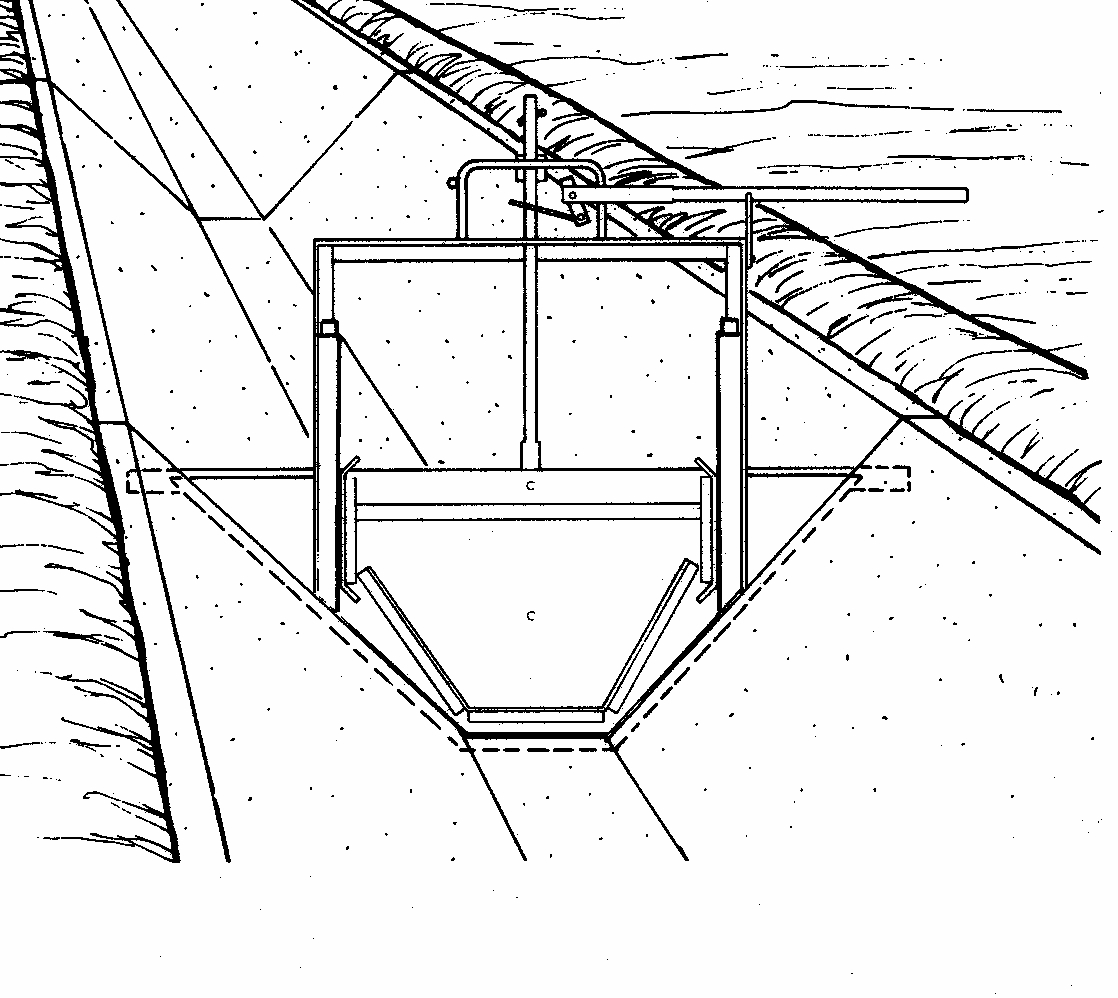

924 Series Headgate
 924 SERIES INDICATES
24” BOTTON CONCRETE LINED  DITCHES
     WITH A STANDARD 1: 1 SLOPE

  •   RUGGED STRUCTURAL STEEL
        Frames and heavy reinforced slides
        insure long trouble-free service.
  •   DURABLE JACKLIFTS
        Are designed for fast, easy flow control.
  •   MOLDED RUBBER GASKETS
        From a watertight seal between the
        frame and the slide.
  •   ALL PARTS ARE SPECIALLY TREATED
       To resist rust and corrosion we use
       A special coating on the frame and all
       imbedded steel components while the
       slides and miscellaneous hardware
       are either hot dipped galvanized or zinc
       plated.
  •   SPEICAL SIZES AND FINISHES
       Many options are available and we will
       be happy to quote you on request.

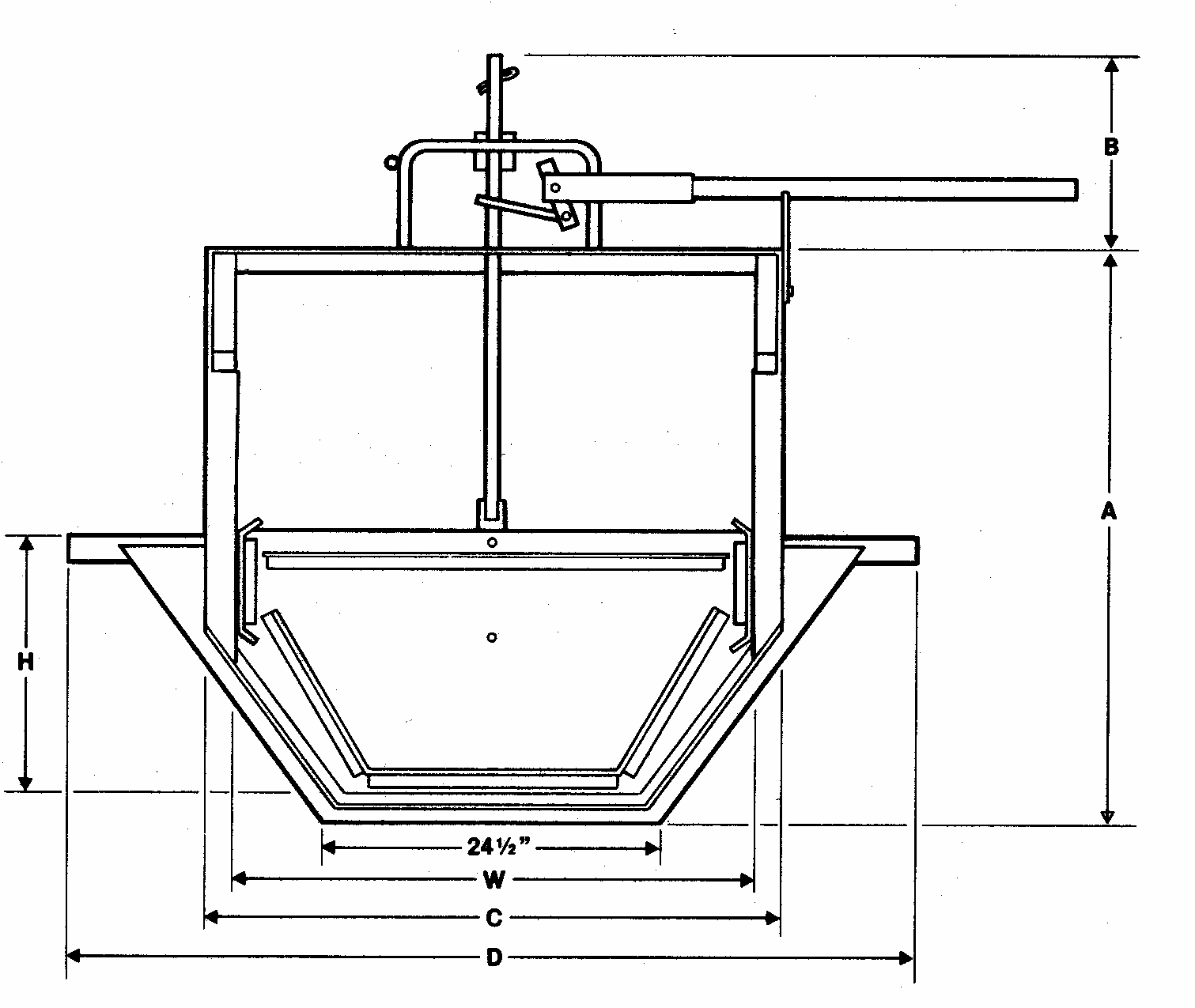

PART # MODEL # OPENING
 W         H		 DIMENSIONS
A       B       C       D
35822 924-4822 48 22 47 9 51 1/2 76
35824 924-4824 48 24 51 9 51 1/2 80
35426 924-5426 54 26 55 9 57 1/2 84
35428 924-5428 54 28 59 9 57 1/2 88
35430 924-5430 54 30 63 9 57 1/2 92
35432 924-5432 54 32 67 9 57 1/2 96
35434 924-5434 54 34 71 9 57 1/2 100

Custom sizes are available upon request.
If you have any special needs please feel free to give us a call and we will be glad to discuss them with you.

We have manufactured this style of gates in more variations than you can possibly imagine, from the standard you are mostly familiar to completely
hot dipped galvanized, to completely stainless steel.

Give us a call at 800-951-0884 toll free and we will talk over your particular needs.
